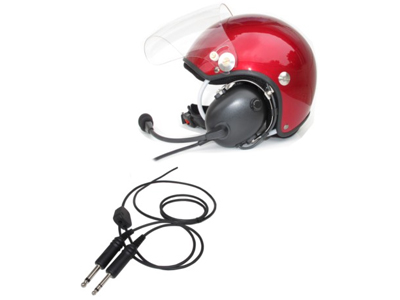

 HM1102AHM102 Helmet& AN-1000A Headset




AN-1000A (without headband)
Overview
PNR Aviation Headset
GA Use Dual Plugs
Super Soft Double Foam Head Pad
New Comfort foam, undercut ear seals
Molded cord assembly made to exceptional pull and flex standards
Noise-canceling electret
Precision flex boom for perfect microphone placement
Straight cord from headset to molded plug, 150CM
Color: Black, green


Noise Reduction Ratings (NRR):24dB
Specifications
Headphone
Type: Dynamic (F50)
Frequency Response:100Hz to 8 kHz
Sensitivity:95+/-5 dB SPL
(1 kHz, 1 mW input per earcup side)
             full volume on ear simulator
Impedance:150 ohms (300 ohms each; wired in parallel)
Rate Input:100mW
Max. Input: 250mW
Microphone and Amplifier:
Element Type: Noise-canceling electret
Frequency Response:150Hz to 5 kHz
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity:-33+/-4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)

General
Operating Temperature: -20 to 70°C
Cordage: Straight cord from headset to molded plug, 150CM
Intercom Connections Plug:
Earphone Plug: PJ-055( .25"F6.3 phone plug)
Microphone Plug:PJ-068( .206"F5.2 phone plug)
Weights: 520g
Noise Reduction Specifications:
Attenuation Frequency Band__________20Hz~20KHz
Main Attenuation Frequency Band__________20Hz~600Hz
Attenuation Capability__________18~21dB
Power Consumption__________30 mW
Headset size range Height: 10 to 14 cm
Color: Green/Black
Boom: Flexible Boom
